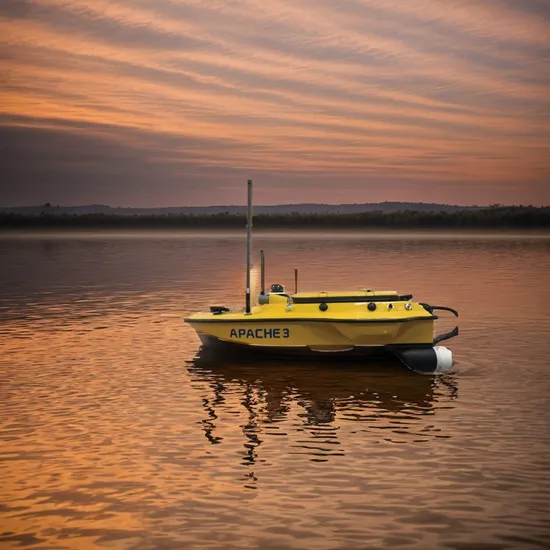

Chcnav Hua Wei No. 3 Light Unmanned Ship Polymer Polyester Carbon Fiber

Basic Info.

Model NO.	Hua Wei No. 3
Type	Navigation Receiver
Voltage	46V
Memory	32GB
The Hull Weight	7kg
Maximum Load	25kg
Ship Type	Triple-Hulled Vessel
Waterproof and Dustproof	IP65
Draft	10cm
Maximum Emission Power	300W
Consumption	10W
Interface	RS232
Transport Package	Boxed
Specification	1000mmx650mmx300mm
Trademark	CHCNAV
Origin	China
Production Capacity	100

Packaging & Delivery

Package Size130.00cm * 70.00cm * 50.00cm Package Gross Weight10.000kg

Product Description

CHCNAV Hua Wei no. 3 Intelligent measurement of unmanned shipPlace of Origin:ChinaBrand Name:CHCNAV Model Number:Hua Wei no. 3

Specifications

The body of a ship	Hull size	1000mmx650mmx300mm
	Material quality	Polymer polyester carbon fiber, Kevlar
	The hull weight	7Kg
	Maximum load	25Kg
	Anti-wind and wave grade	Level 3 wind, force 2 wave
	Ship type	Triple-hulled vessel
	Waterproof and dustproof	IP65
	Draft	10cm
	Indicator lamp	Two-color light, which can display the positioning signal status
	Video	360 omnidirectional video
	Secure	Beach automatic reversing, ultrasonic obstacle avoidance and video observation
	Return to base	Low power automatic return, lost contact automatic return (near return)
	Safeguard procedures	The ship body is equipped with anti-collision strip, safe and reliable
Power	Power type	Electromotion
	Motor type	Brushless electric machine
	Steering type	No rudder machine steering
	Motor power	Single motor maximum of 700W
	Motor speed	Maximum of 7000 rpm
	Installation mode of motor	Plug and pull the design, easy to dismantle and replace
	Waterproof grass method	Culvert-type design, waterproof straw cover
	Battery specifications	18.5V 40Ahx4, rechargeable lithium battery, 18650 cell
	Duration of flight	6 h @ 2 m/s, optional up to 12 h @ 2 m/s
	Maximum ship speed	8m/s
Communication control	Base station communication	Radio & Network & CORS
	Data communications	Standard with 4G & bridge & radio station
	Remote communication	2.4GHz Radio & 4G & network bridge
	Video communication	4G & bridge
	Remote control distance	Intelligent remote control of 2 km, 4G unlimited (depending on the network situation) and network bridge of 2 km
	SIM card slot	The eSIM and the Nano card slot
	Interface	2 xRJ 45 network port, 3xRS232 serial port, 1xRS485 serial port, 1 xpps
	Control model	Manual & Automatic
	Main control waterproof and dustproof	IP67
	Data storage software	Local storage (multi-channel storage) and remote storage task planning, data collection and data post-processing and other functions can realize autonomous navigation, hull parameter control, multi-angle video display and coordinate conversion and other functions
Positioning system	SS	BDS B1/B2,GPS L1/L2,GLONASSL1/L2,Galile0 E1/E5,SBAS,QZSS
	Thoroughfare	432 channel
	Cold boot	<30s
	Initialization time	<5s(representative value )
	Single point positioning accuracy	Plane: 1.5m, 2.5m vertical
	SBAS positioning accuracy	50cm flat and 85cm vertical
	The DGNSS positioning accuracy	Flat surface 40cm + 1ppm, vertical 80cm + 1ppm
	RTK positioning accuracy	Flat surface ± 8mm + 1ppm and vertical ± 15mm + 1ppm
	Orientation accuracy	0.2°(1m Baseline)
	Used guide accuracy	6°/h
	IMU refresh rate	200Hz
Deep measurement system	Data typ	CHCNAV Format, NMEA SDDPT / SDDBT, and the raw waveform
	Host weight	1.1Kg
	Depth range	0.15-300m
	Total accuracy of sounding	±1cm+0.1%h(h is water depth)
	Resolution ratio	1cm
	Maximum sampling rate	30Hz
	Frequency	200KHz
	Beam Angle	6.5°±1°
	Supply voltage	10-30V DC or 220V AC adapter
	Maximum emission power	300W
	Consumption	10W
	Interface	RS232

CHCNAV Hua Wei no. 3 Light unmanned ship

CHCNAV independently developed a suitable for urban small and medium-sized rivers, inland rivers, rivers, lakes flow measurement or mapping of the light type unmanned ship.

Light and portable

The hull size is 1 meter long, the hull weighs 7kg, and the car is easy and free.

Inertial navigation

10S satellite lock, deviation is only 0.2m, no fear of satellite lock, easy through the bridge hole.

Overspeed motor

The maximum ship speed is 8 m/s, the maximum motor speed is 7000 RPM, and the river basin is easy to deal with.

Core function description

Light and portable
Overspeed motor
Inertial navigation
Network transmission
